240 SERIES BLACK NYLON BRAID OVER PTFE HOSE

$28.99 AUD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

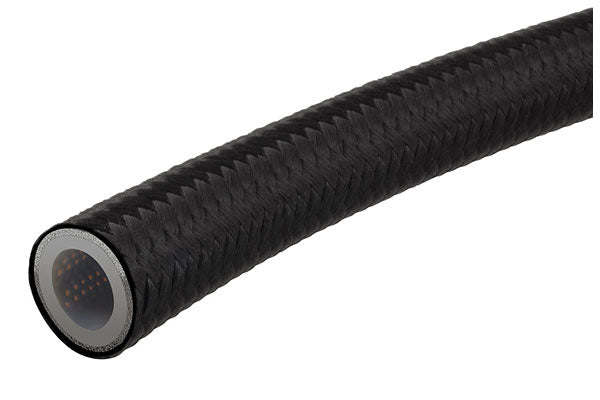

Raceworks 240 Series Black Nylon Braided PTFE hose is constructed from a PTFE inner tube that is compatible with all fuels, oils, nitrous including brake and clutch fluids. The PTFE tube has a black lightweight outer cover that is durable, and resistant to abrasion and expansion. The Raceworks 220 Series Hose is the best option for use on fuel systems as it won’t allow the permeation of fuel smell, and has the highest pressure and temperature rating in the range of Raceworks hoses. All Raceworks products come with a 2 year warranty.

Temperature Range: -70°C to 250°C. Ethanol & Methanol Safe

Specifications

Size	Operating Pressure	Burst Pressure	Inside dia Inch	Inside dia mm	Outside dia Inch	Outside dia mm	Weight (gm/m)	Bend Radius (Inch)	Bend Radius (mm)
AN-3	3000psi	10000psi	1/8″	3.1mm	1/4″	6.4mm	TBA	TBA	TBA
AN-4	3000psi	10000psi	3/16″	4.7mm	5/16″	7.9mm	85g	1.06″	27mm
AN-6	2500psi	9000psi	5/16″	7.9mm	15/32″	11.8mm	113g	1.57″	40mm
AN-8	2000psi	7000psi	13/32″	10.5mm	17/32″	13.3mm	142g	1.89″	48mm
AN-10	1500psi	5000psi	17/32″	13.4mm	41/64″	16.2mm	255g	3.15″	80mm
AN-12	1200psi	4500psi	41/64″	16.2mm	49/64″	19.3mm	284g	4.72″	120mm
